SKA

Configuration

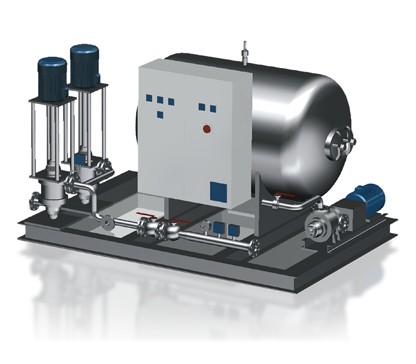

Package system, completely automatic, assembled, cabled and ready for use. This plant is tested and homologated by the most important classification societies. This package consists of:
– horizontal cylindrical vessel,
– manifolds,
– valves,
– switchboard for
– plant monitoring and control,
– hydraulic and electrical lines.
– Predisposed for sea water E/pumps,
– fresh water E/pumps and E/compressor.

Application
Firefighting service.

Design conditions
Max. Pressure 10-17 bar
Max. Temperature 50 °C
Min. Temperature 0 °C

Special plants
Particular constructions are realized on customer’s specification.

Accessories and components
ISAF systems can be supplied complete with monitoring equipments, valves, switchboards and other accessories which assure their proper functioning.
For an easier installation a wide range of components can be supplied.

Tests
RINA-ABS-LR-BV-DNV-MMI-CRS-RS-CCS-KS-NKK-IRS

Materials
A1 STEEL P 265 GH
A2 STEEL P 355 NH
A3 ASTM A 106 B
X AISI 304 L
XX AISI 316 L

Connections
Threaded BSP – NPT
Flanged UNI – DIN – ASME – JIS

Treatments
Treatment of internal and external surfaces according to the application of the plant.
